Description

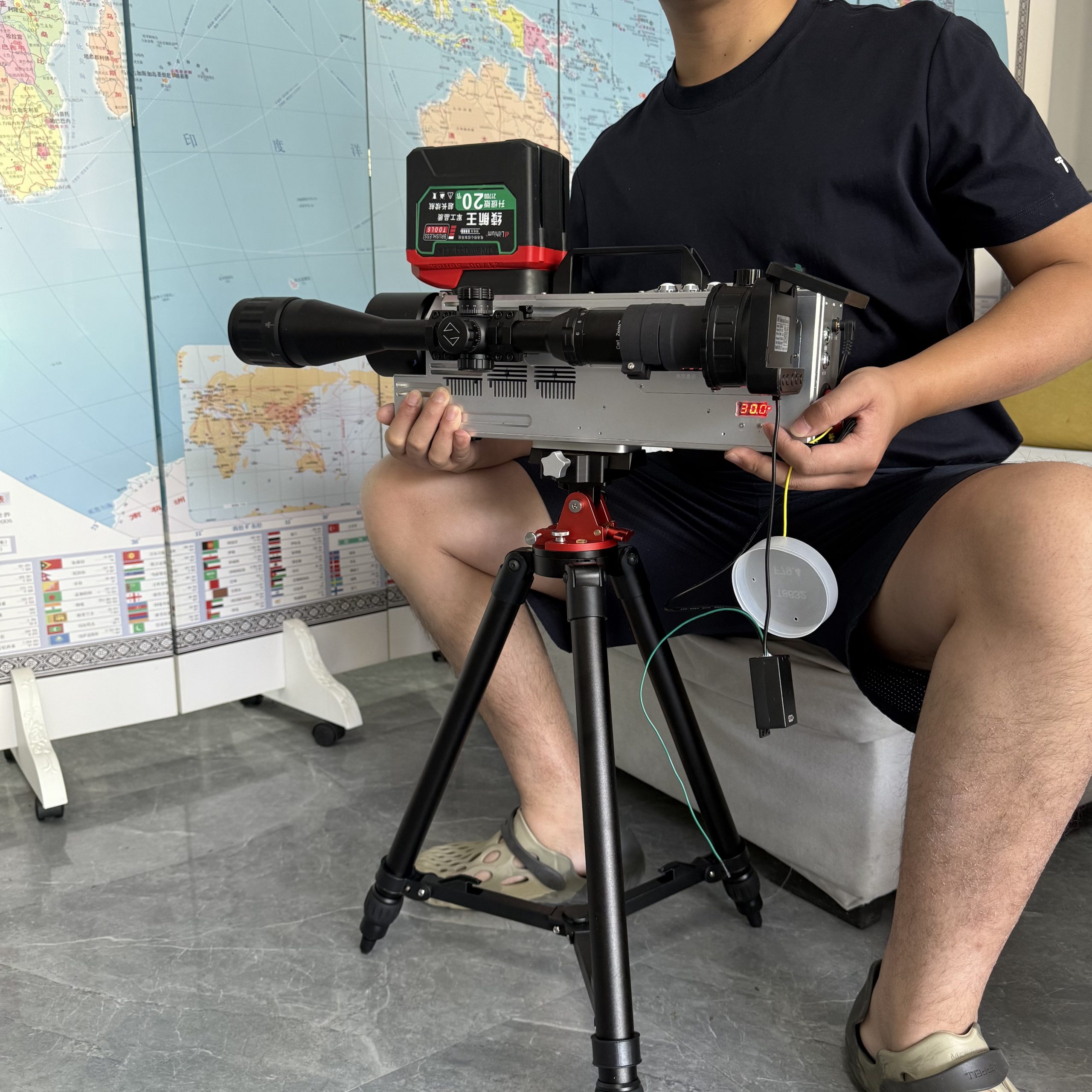

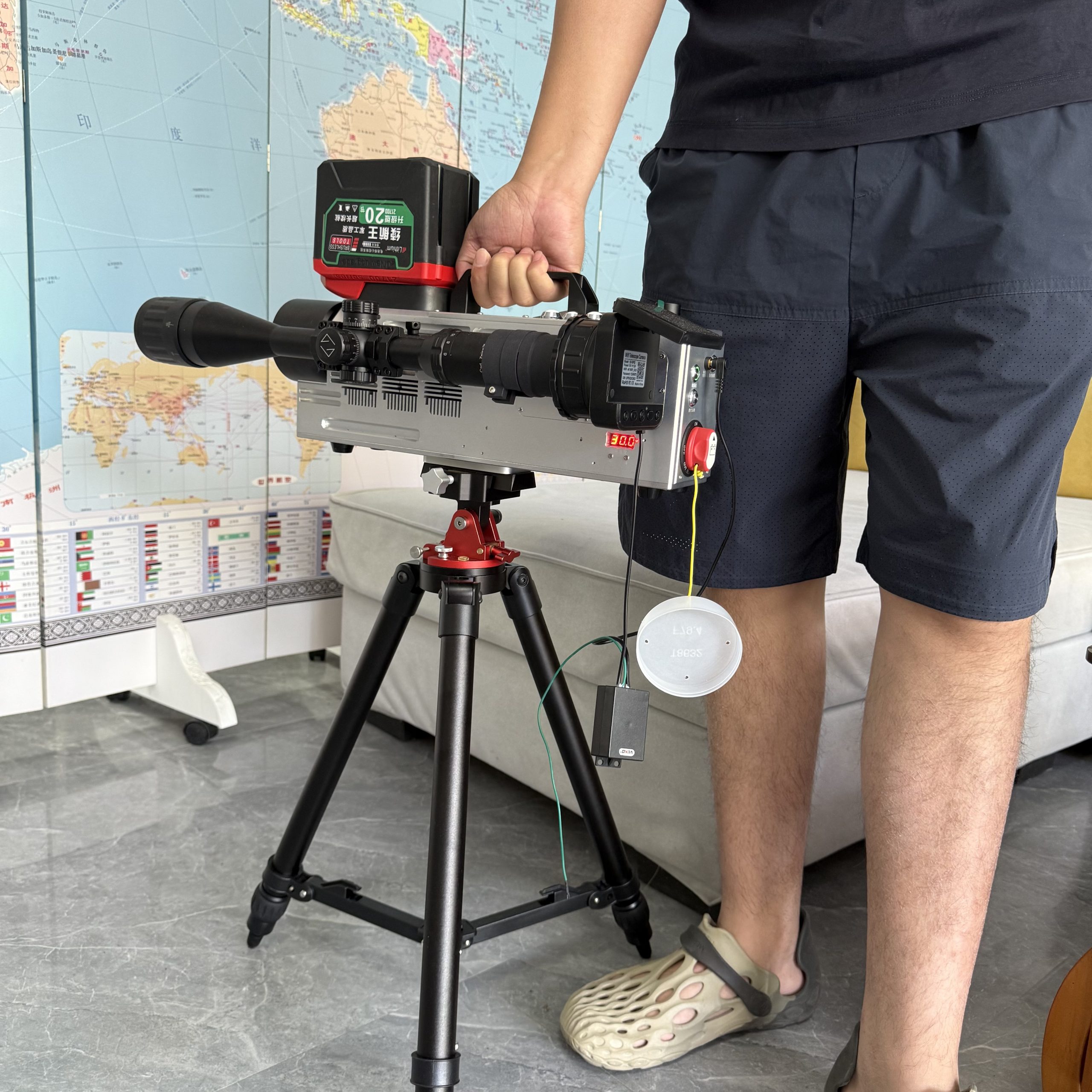

750W Laser Machine

The 750W laser machine delivers powerful, precise performance for cutting, engraving, and industrial fabrication. Its high-power laser output ensures fast processing, clean edges, and reliable accuracy across metal, wood, acrylic, leather, and other materials. Advanced cooling, stable beam quality, and intelligent controls boost productivity while reducing downtime. Manufacturers, workshops, and creative professionals choose the 750W laser machine for efficient operation, consistent results, energy savings, and long-term durability in demanding applications.

Specifications

• Supply Voltage: DC 21V (16V–24V)
• Center Wavelength: 1040nm
• Power Output: 750W
• Effective Range: Up to 300 meters
• Preview Light: Coaxial synchronous green laser automatically matches the main laser focus for precise targeting.

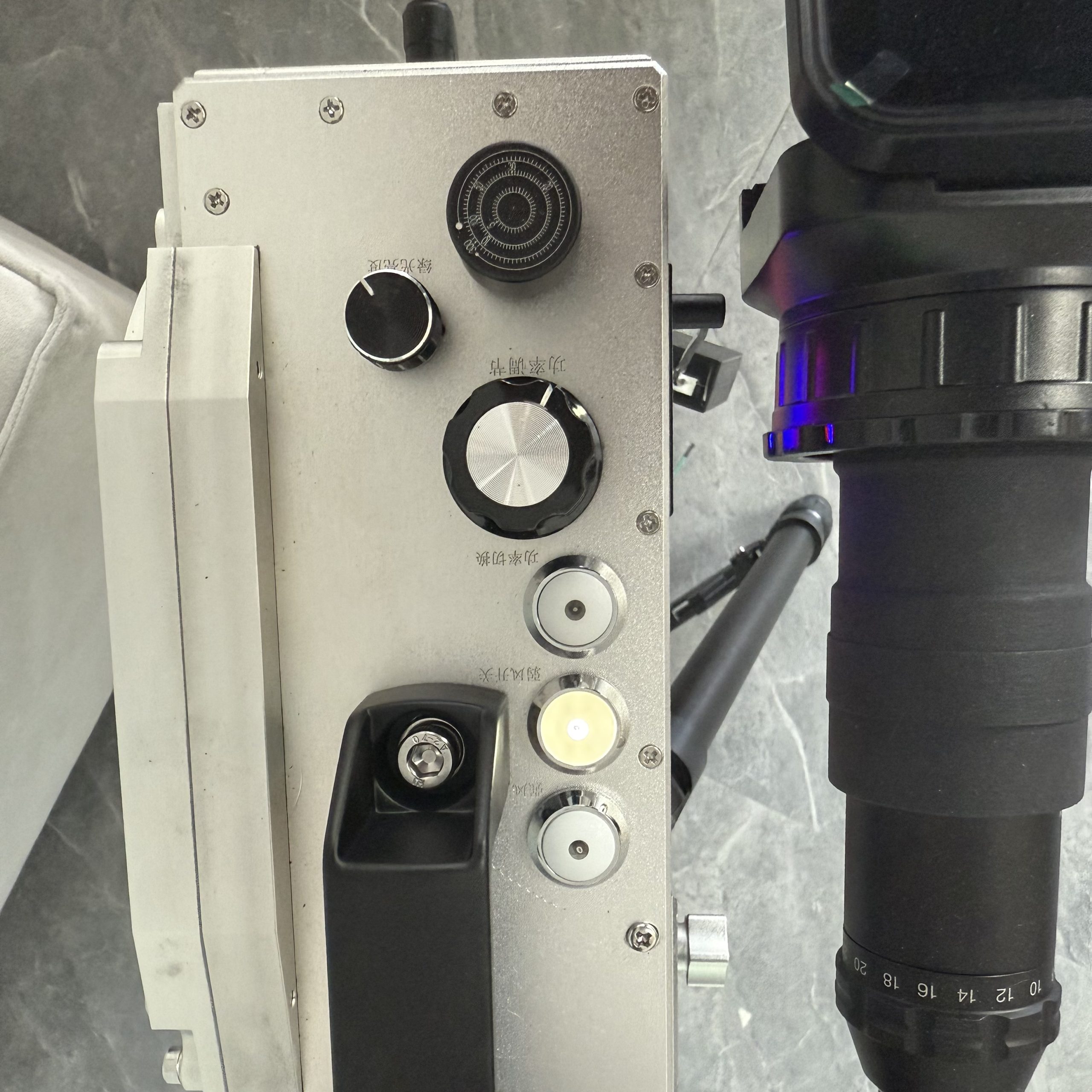

• Focusing System: High-precision servo electric focusing with a distance adjustment knob, meter scale, and digital focal length display. The system keeps the laser spot stable during focusing, allowing accurate target alignment through the magnifying scope without relying on the green laser. Users can preset the focal length with the adjustment dial and digital display.
• Power Adjustment: Independently adjust the main laser and green laser output.

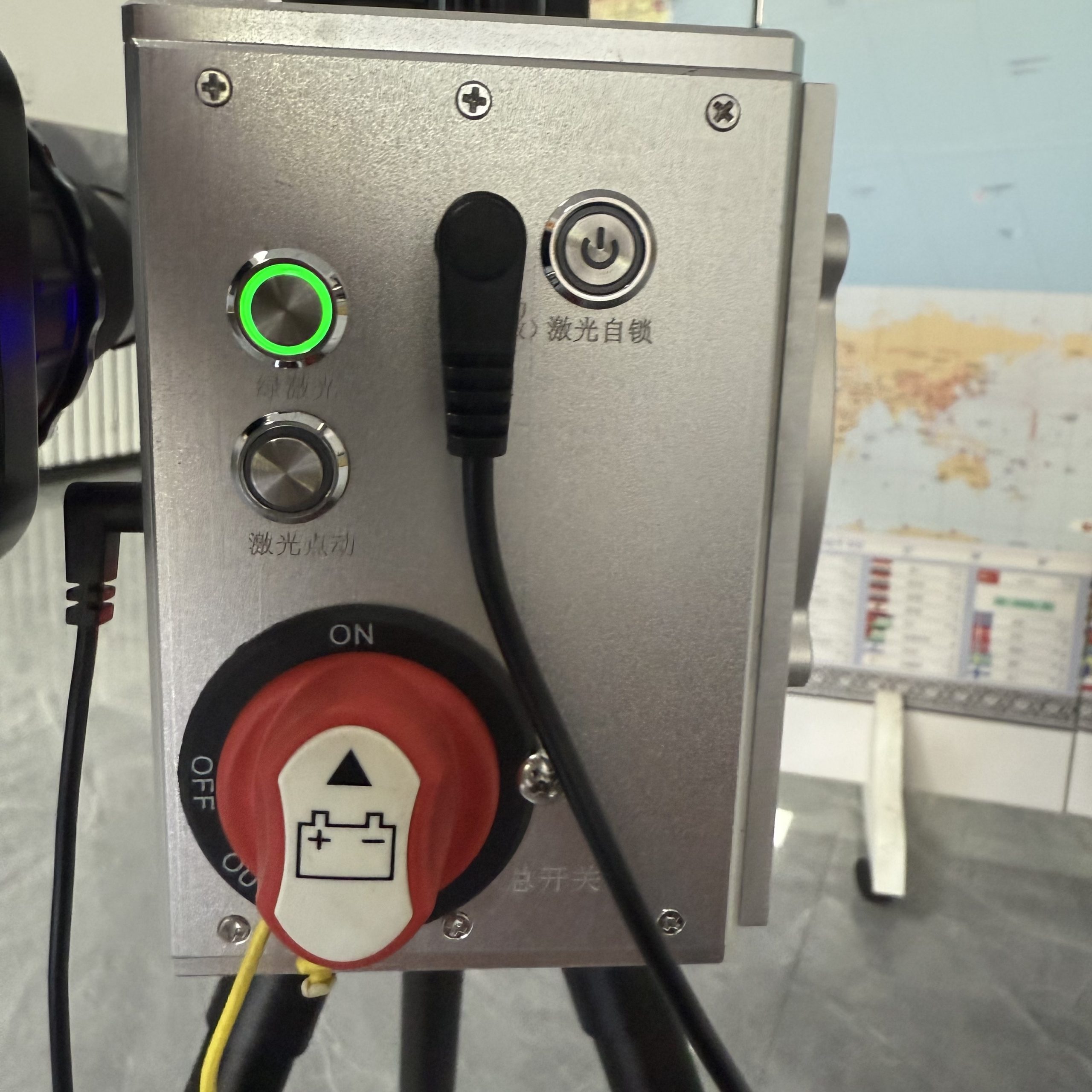

• Control Methods: Operate any of the three control modes independently or simultaneously without interference:
  1. Body button (self-locking or momentary)
  2. Remote control (optional self-locking or momentary)
  3. External short-circuit trigger, compatible with a foot switch

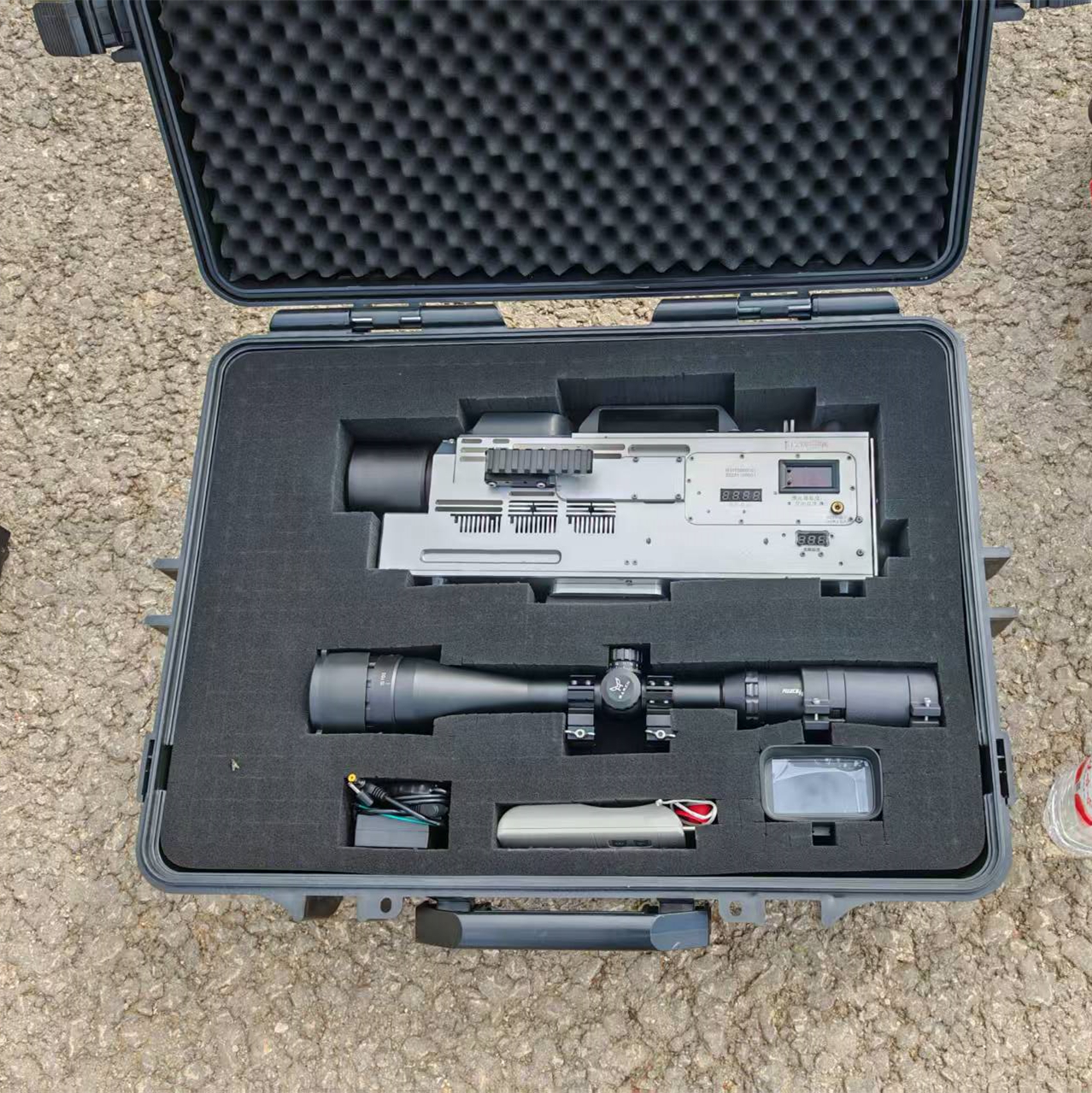

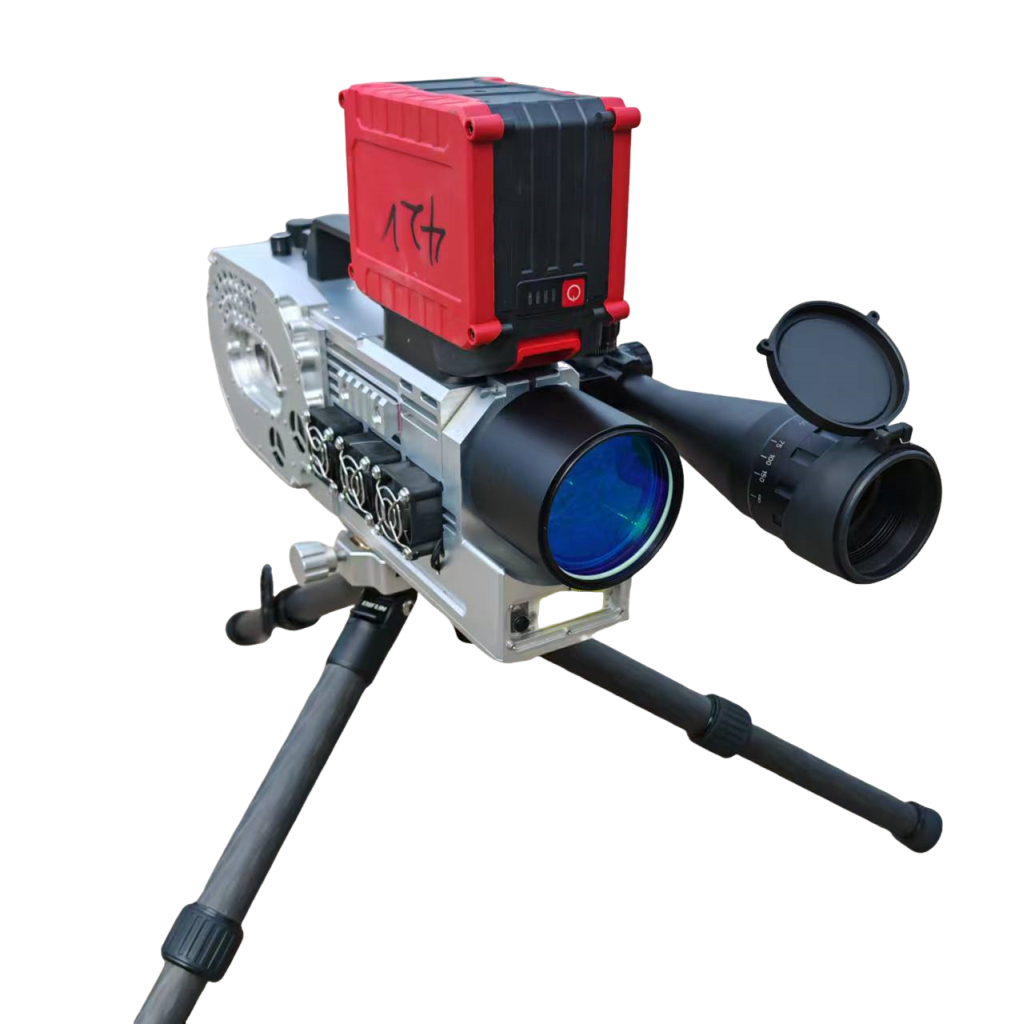

• Targeting System: Coaxial green laser, 24× optical scope, and electronic display. An optional larger-aperture high-power scope is available.
• Accessory Mounting: Two 21mm standard Picatinny rails.

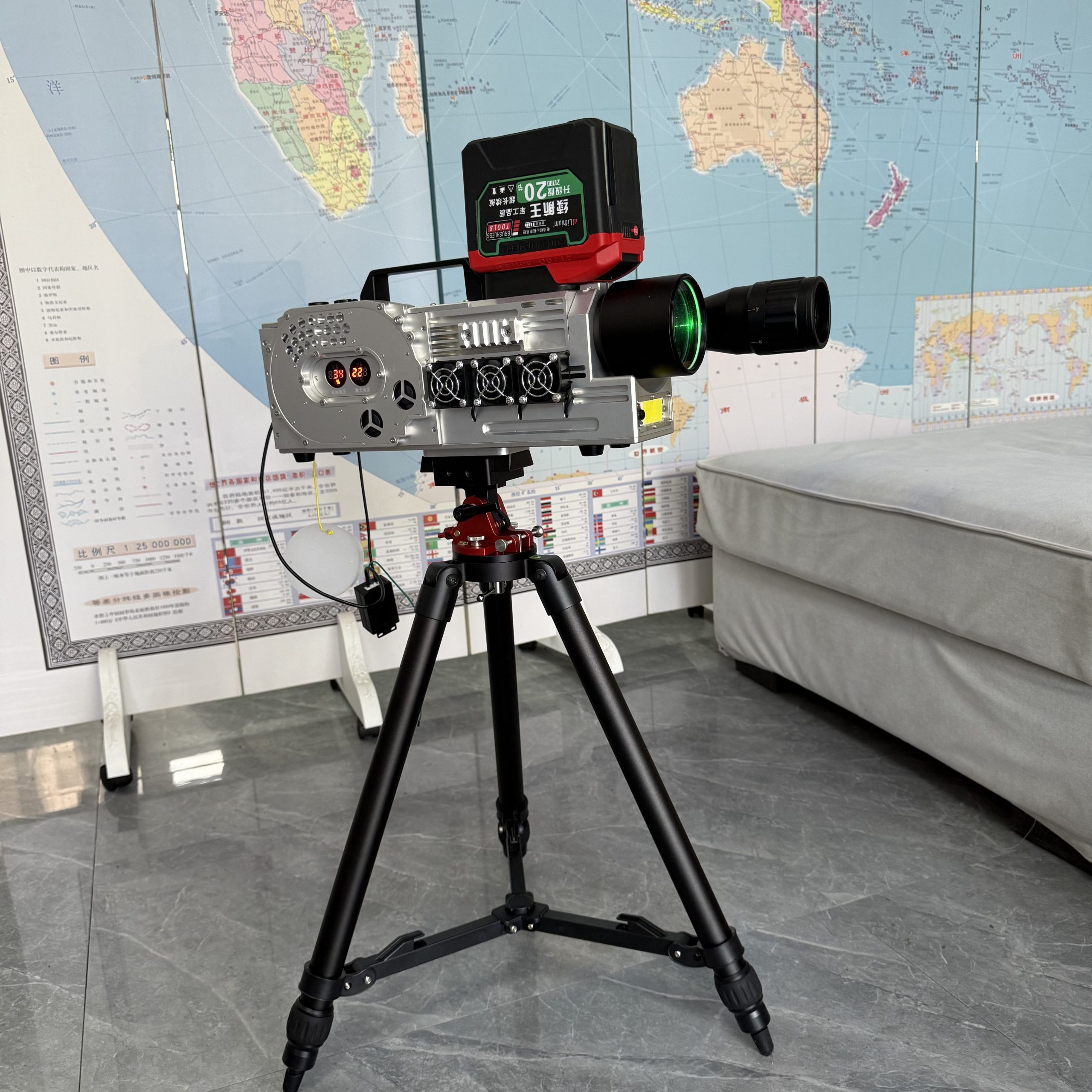

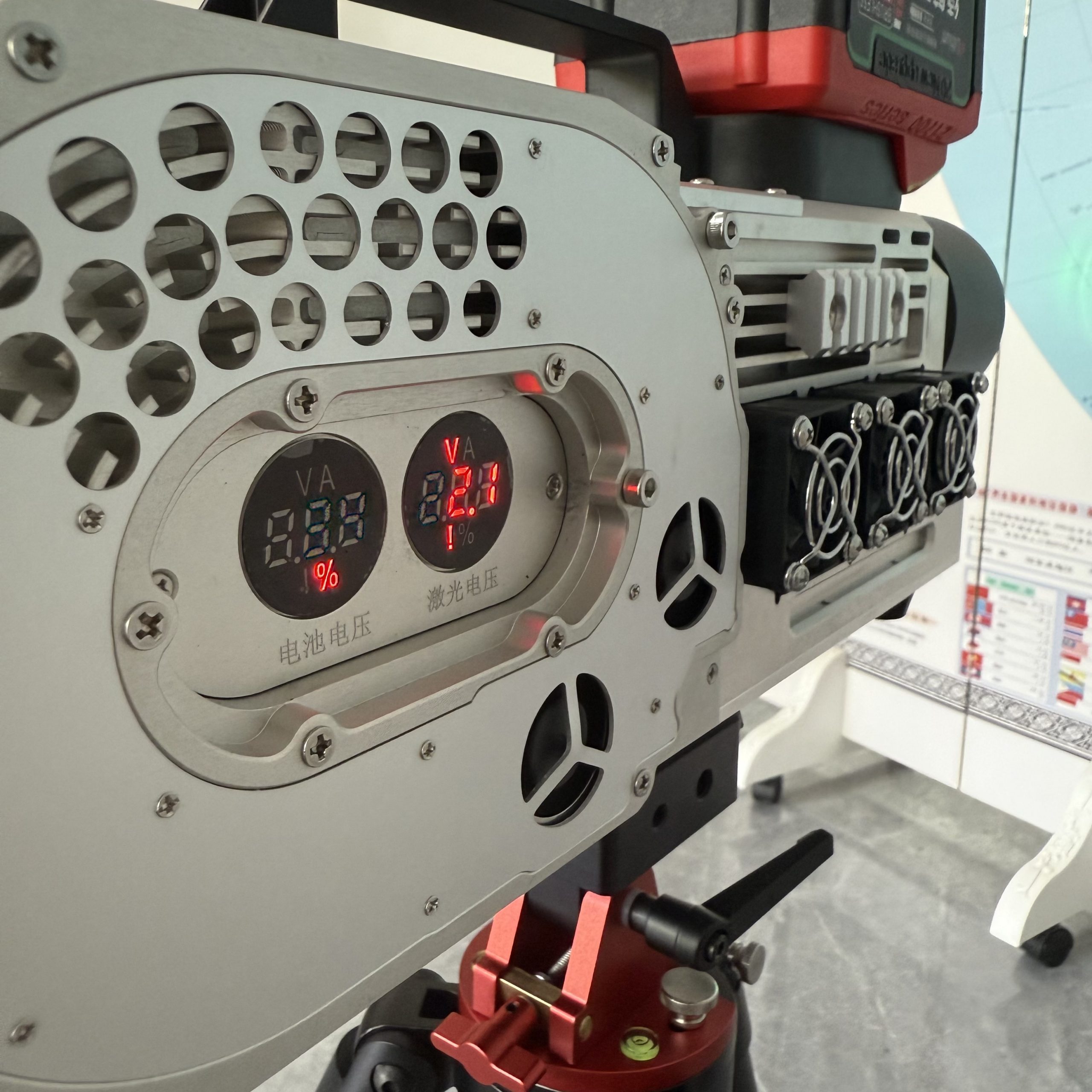

• Cooling System: Air cooling with an adjustable fan, electronic temperature protection, and automatic output shutdown during overheating.
• Power Source: Replaceable lithium battery supports continuous operation.
• Performance: Ignites cardboard at distances of 300 meters or more and melts walls or cement bricks from over 100 meters away.
• Battery Runtime: A 15Ah battery provides over 20 minutes of continuous operation at full power. Higher-capacity battery options are available.

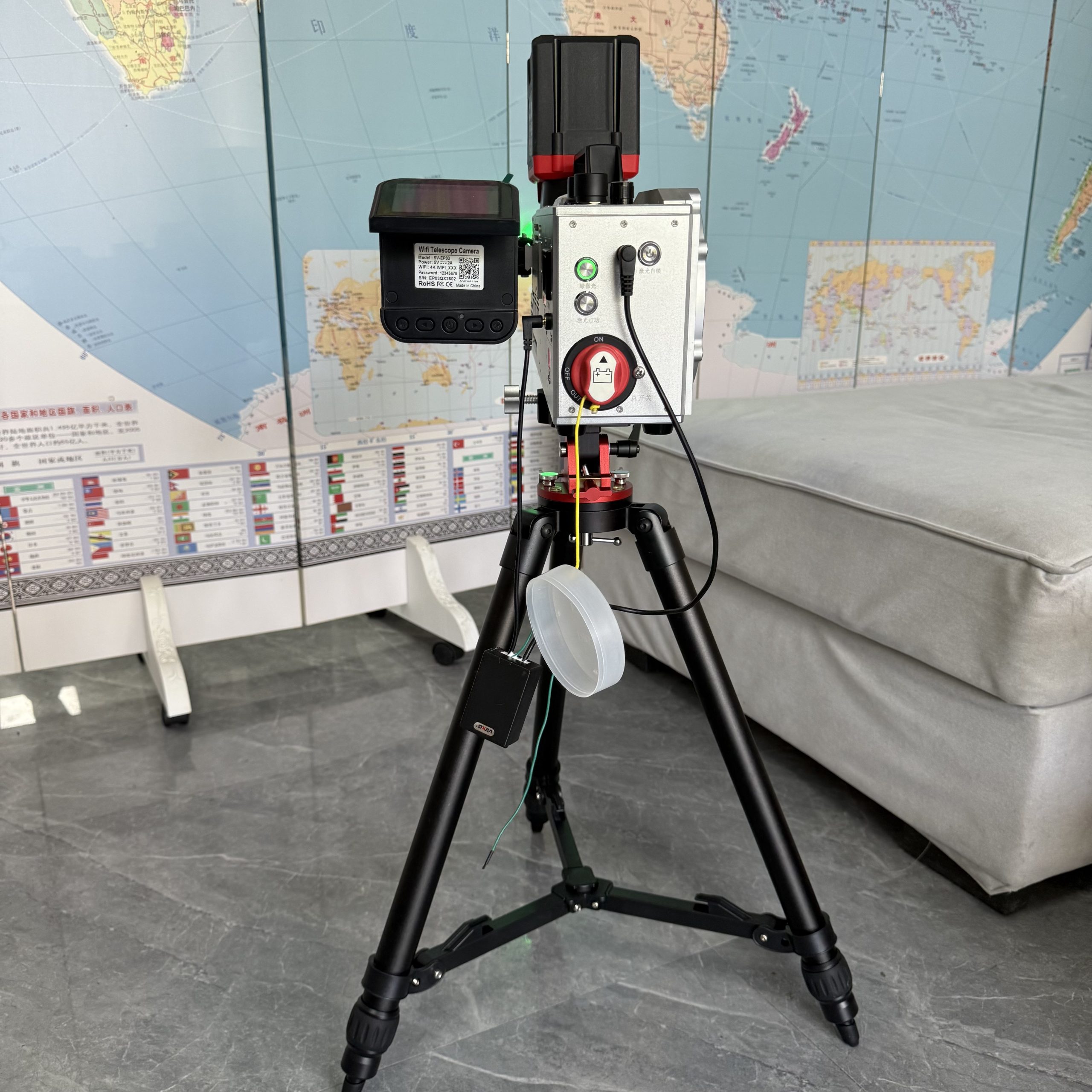

• Pan-Tilt Unit: Precision manual PTZ.

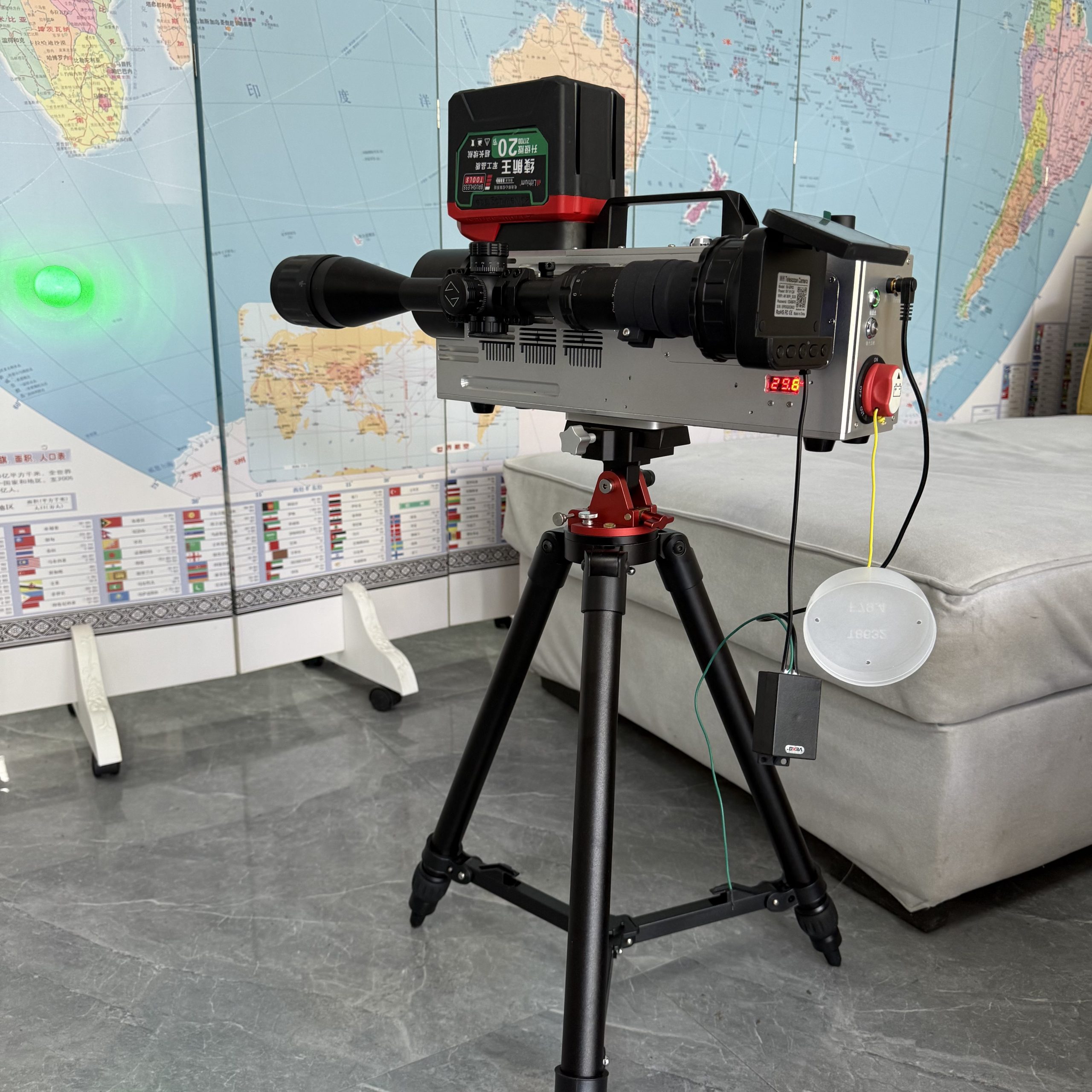

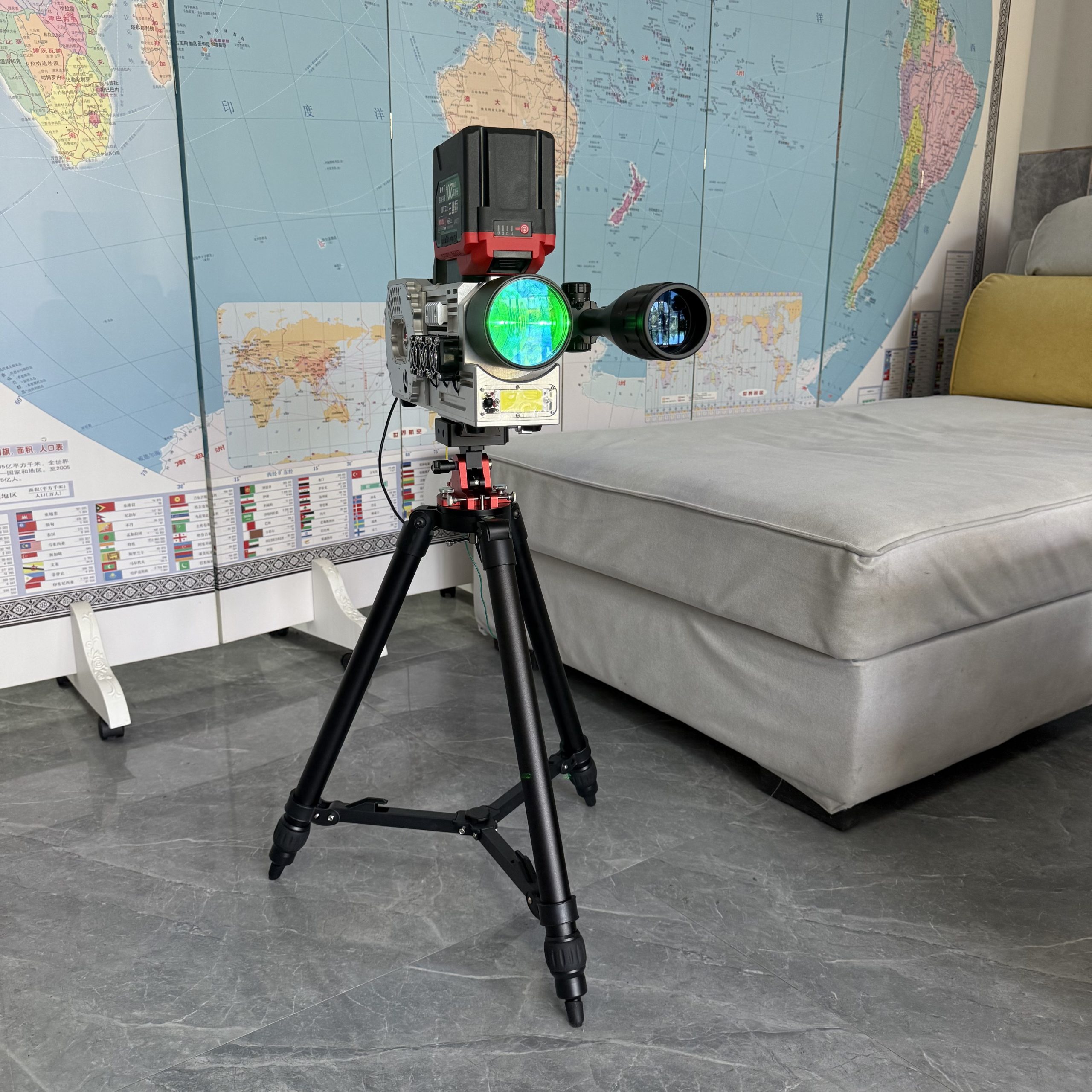

• Tripod: High-quality aluminum alloy tripod.
• Weight: 6kg (battery not included).
• Dimensions: 445 × 110 × 170mm (including handle, lens, and fan).
• Body Material: CNC-machined aviation-grade aluminum alloy.
